Flange Surfaces

No headers

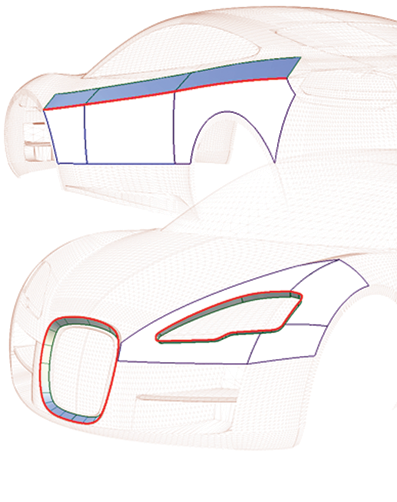

	The Multi-Surface Draft tool creates a flange surface along an edge, or a chain of edges. Use Explicit Control or the Bezier option to control the surface quality.
	The Draft/Flange tool provides a similar function, from curves or surface edges. It can create surfaces on both sides of the curve, either as a pair, or as a single surface.
