Quality & Profile Options

Table of contents

No headers

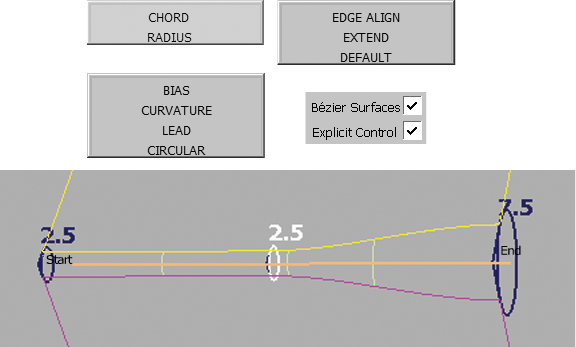

The Construction Type, Variable Fillets and Section Type options provide the full range of fillet profiles.

Use the Flow Control options with Explicit Control and Bezier settings to adjust the CV layout.

Tip

With Variable radius, use the Shift key to add or remove additional radius values by clicking on the orange edge. Use the middle mouse button to move the radius values along the edge.
