Insert in-line wire markers

No headers

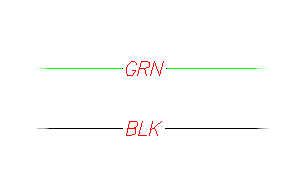

Inserts a reference-only in-line wire label.

Labels can identify a special signal name or conductor color. Wire numbering and reporting ignore these reference-only labels.

Note

The wire breaks around the inline marker.

Click Schematic tabInsert Wires/Wire Numbers panelWire Number Leader drop-downIn-Line Wire Labels.
The Insert Component dialog displays with a selection of predefined in-line markers and user-defined markers.
Select a marker and place it on a wire.
Note
If the label is too wide, use the Squeeze Attribute/Text tool. You can also use the Adjust In-Line Wire/Label Gap tool to adjust the gap width rather than squeezing the attribute to fit the gap.
Press ESC to exit the command.

Tip You can also create wider marker symbols by following the block naming convention for terminal symbols. For example, the horizontal Red marker's file name is C:\Documents and Settings\All Users\Documents\Autodesk\Acade {version}\Libs\{library}\HTO_RED.dwg and the vertical version is C:\Documents and Settings\All Users\Documents\Autodesk\Acade {version}\Libs\{library}\VTO_RED.dwg. Libraries are in C:\Users\Public\Documents\Autodesk\Acade {version}\Libs\ on a Windows Vista or Windows 7 installation. AutoCAD Electrical keys off of the first four characters of the block/drawing name.

References

Insert component

This icon menu can be modified, expanded, or replaced with a custom menu. You can change the default icon menu using the Library and Icon Menu Paths section of the Project properties: project settings tab. Use the Icon Menu Wizard to modify the menu. The default icon menu can also be redefined in wd.env. Add entry "WD_MENU" for schematic icon menu and "WD_PMENU" for panel layout icon menu.

Insert Component

Ribbon: Schematic tab

Insert Components panel

Insert Components drop-down

Icon Menu.

Toolbar: Main Electrical

Menu: Components

Insert Component

Command entry: AECOMPONENT

Multiple Insert (Icon Menu)

Ribbon: Schematic tab

Insert Components panel

Multiple Insert drop-down

Multiple Insert (Icon Menu).

Toolbar: Main Electrical

Menu: Components

Multiple Insert

Multiple Insert (Icon Menu)

Command entry: AEMULTI

Note

This dialog box is also accessed when inserting Pneumatic, Hydraulic, or P&ID components; in-line wire labels; stand-alone cross-reference symbols; cable markers; and saved circuits.

Select an icon picture or the component type from the Menu tree structure. The main menu in the tree structure is displayed as the menu heading just above the menu tree structure.

Tabs	Menu: Changes the visibility of the Menu tree view. Up one level: Displays the menu that is one level before the current menu in the Menu tree view. This option is unavailable if the main menu is selected in the Menu tree view. Views: Changes the view display for the Symbol Preview window and Recently Used window. The current view option is indicated with a check mark. Options include: Icon with text, Icon only or List view.
Menu	The tree structure is created by reading the icon menu file (.dat). The tree structure is based on the arrangement order of submenus defined in the .dat file.
Symbol Preview window	Displays the symbol and submenu icons corresponding to the menu or the submenu selected in the Menu tree structure. Clicking on the icon performs one of the following functions based on the icon properties as defined by the .dat file: Inserts the symbol or circuit onto the drawing Executes a command Displays a submenu Note When you move the cursor over an icon, the icon name and block/circuit/command name display as tooltip information.
Recently Used	Displays the last components inserted during the current editing session; the most recently used icon displays in the top. This list follows the view options setting in the symbol preview window (icon only, icon with text or list view). The total number of icons displayed depends on the value specified in the Display edit box.
Display	Specifies the number of icons to display in the Recently Used list box. Enter integer numbers only; the default value is 10.
Vertical/Horizontal	Inserts the icon using a vertical or horizontal orientation. This value is opposite the default ladder rung orientation for the drawing.
No edit dialog	Turns off the Insert/Edit Component dialog box when inserting symbols onto the drawing. To add component detail later, click the Edit Component tool, and select the component to edit.
No tag	Inserts the component, untagged (that is, without assigning a unique Component Tag). The untagged value that displays is the TAG1/TAG2 default value for the component. To add component detail later, click the Edit Component tool, and select the component to edit.
Always display previously used menu	Indicates to display the previously used menu each time you open the Insert Component dialog box. For example, if you insert a push button from the Push Buttons menu, the next time you open the Insert Component dialog box the Push Button menu displays by default.
Scale schematic	Specifies the component block insertion scale. This defaults to the value set in the Drawing Properties Drawing Format dialog box. Once set, this value is remembered until reset or until the drawing editing session ends.
Scale panel	Specifies the footprint insertion scale. This defaults to the value set in the Drawing Properties Drawing Format dialog box. Once set, this value is remembered until reset or until the drawing editing session ends.
Type it	Manually type in the component block to insert.
Browse	Browses to and selects the component to insert.

Right-click menus

Options for the Menu tree structure view

Right-click on the main menu or submenu in the Menu tree structure view to display the following options:

Expand/Collapse: Toggles the visibility of the menus.
Properties: Opens a Properties dialog box to view the existing menu or submenu properties like the menu name, image, or submenu title. Use the Icon Menu Wizard to change any menu properties.

Options for the Symbol Preview window

Right-click an icon or in empty space in the Symbol Preview window to display the following options:

View: Changes the view display for the Symbol Preview window and Recently Used window. The current view option is indicated with a check mark. Options include: Icon with text, Icon only or List view.
Properties: (available for icons only) Opens a Properties dialog box to view the existing symbol icon properties like the icon name, image, block names and so on. Use the Icon Menu Wizard to change any icon properties.

Pneumatic, Hydraulic, and P&ID icon menus

The Menu tree structure displays the symbols for the selected component type (pneumatic, hydraulic, or P&ID). The Insert Pneumatic Component, Insert Hydraulic Component, and Insert P&ID Component tools are accessed from the Schematic tab Insert Components panel on the ribbon or the Extra Library toolbar.

	Insert Pneumatic Component
	Insert Hydraulic Component
	Insert P&ID Component
