Associate terminals

Associate terminals

1. Click Schematic tabEdit Components panelAssociate Terminals.
2. Respond to the prompts as follows:



   Select “Master” terminal:

    Select terminal 4 on line reference 211



   Pick terminal:

    Select terminal 5



   Pick terminal:

    Select terminal 6, right-click
   Note

   The command prompt area indicates that the terminal was added as level 02 or level 03 once you pick the terminal.

3. Right-click terminal 6 and select Edit Component.

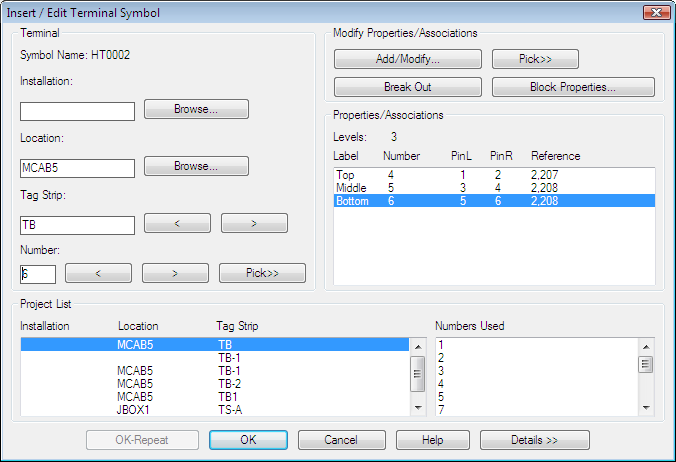

   On the Insert/Edit Terminal Symbol dialog box, Properties/Associations section, all three levels have been assigned. You can now move a terminal to another level using the Add/Modify Association dialog box.


4. On the Insert/Edit Terminal Symbol dialog box, Modify Properties/Associations section, click Add/Modify.

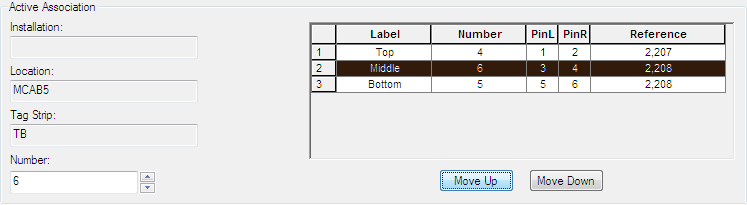

5. On the Add/Modify Association dialog box, Active Association section, highlight level 3 in the grid and click Move Up.


   The grid updates to reflect the move. Notice that terminal 6 is now assigned to level 2.

6. Click OK.
7. On the Insert/Edit Terminal Symbol dialog box, click OK.
8. If asked to update related components, click Yes-Update.
