Procedure

To use this sample:

1. Build the sample. The plugin (VBSample86.dll or CSSample86.dll) and the associated .tbp file are copied to the AutoCAD Map 3D Client bin directory.
2. Start AutoCAD Map 3D Administrator and open the TBSAMPLE workspace.
   Note

   Make sure you start the AutoCAD Map 3D Administrator, not the AutoCAD Map 3D Client.

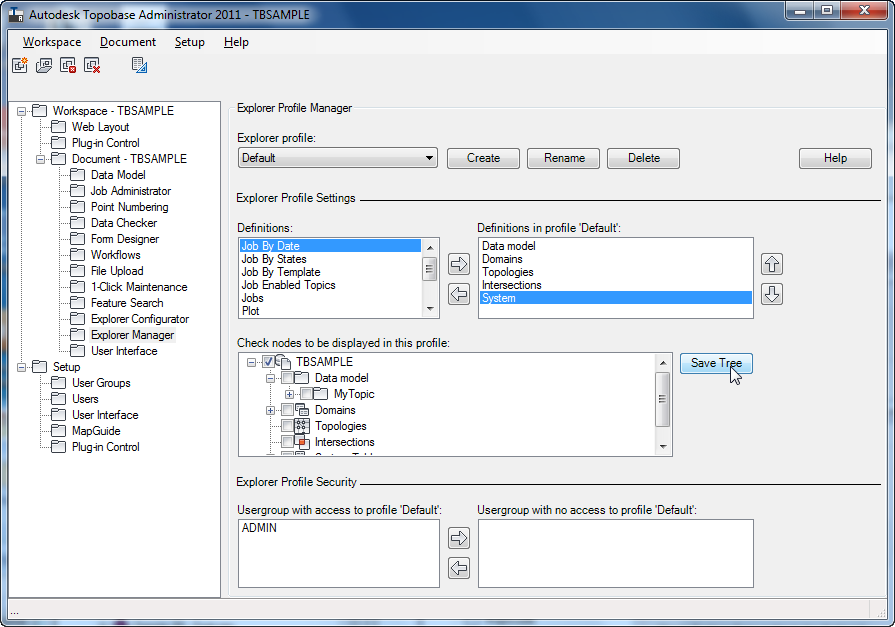

3. In the left tree, select Document - TBSAMPLEExplorer Manager.
4. In the Definitions area, select System.
5. Click the right-arrow icon to move System to the Definitions in Default pane.
6. In the Check Nodes To Be Displayed In This Profile pane, select the System Tables check box.
7. Click Save Tree.

8. Close AutoCAD Map 3D Administrator.
9. Start AutoCAD Map 3D Client and open the TBSAMPLE workspace.
10. In the Document Explorer, expand the System Tables tree.
11. Under System Tables, right-click TB_VERSION and select Show Form from the context menu.

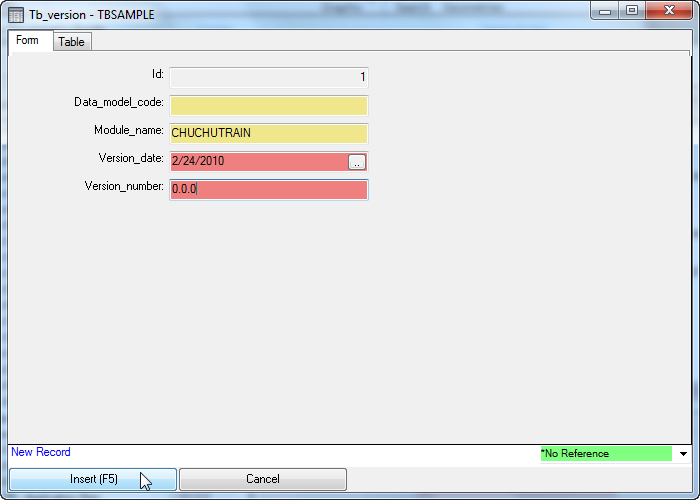

12. Select the New Record toolbar button and create a new record with these values:
    • Version = 0.0.0
    • Module Name = CHUCHUTRAIN

    Set the Version_date to some date in the past.


13. Click Insert (F5).
14. Close the form. Close AutoCAD Map 3D Client.

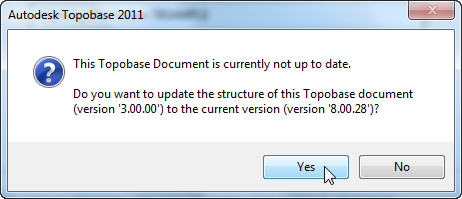

15. Open AutoCAD Map 3D Administrator and re-open the TBSAMPLE workspace.
