To use this sample:

Build the sample. The plugin (VBSample112.dll or CSSample112.dll) and the associated .tbp file are copied to the AutoCAD Map 3D Client bin directory.
Start AutoCAD Map 3D Administrator and open the TBSAMPLE workspace.
Note
Make sure you start the AutoCAD Map 3D Administrator, not the AutoCAD Map 3D Client.
In the tree view on the left-hand side, select Data Mode .

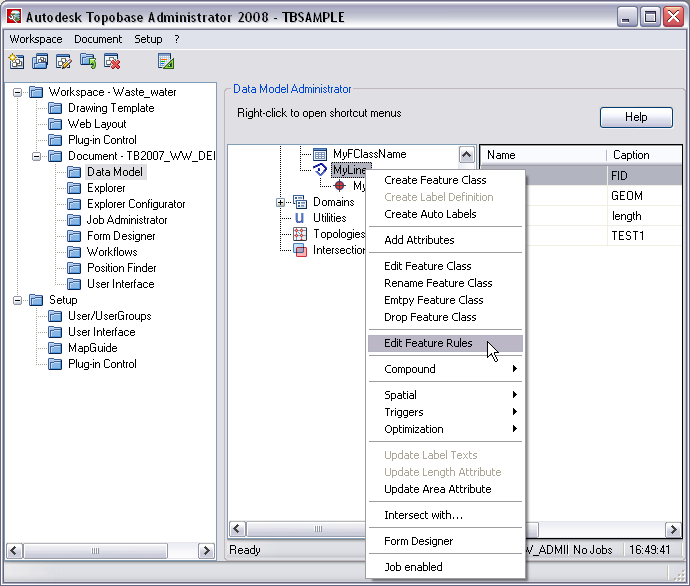

Right-click a feature and select Edit Feature Rules.

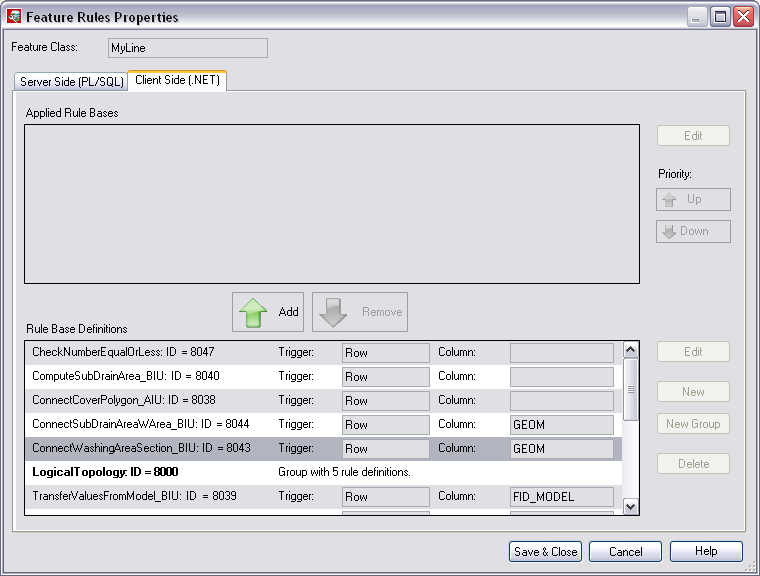

The Feature Rules Properties dialog box is displayed. Select the Client Side (.NET) tab.
