Plan View

Opens a plan view that shows the current position of the viewer in the model.

• Navigation tab Navigate Plan View

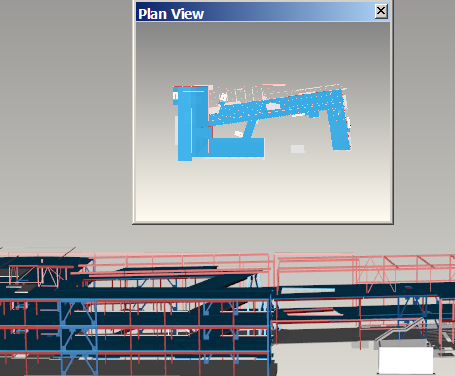

1. Click Plan View. A pin shows the current position, of the viewer, pointing to the direction of the camera.
2. In plan view, you can scroll with the mouse wheel to zoom in and out or press and drag the mouse wheel to Pan.

   NoteClick the pin, then drag and drop it to another point to change the position of the viewer.
