Isolating objects

Auto-zoom to isolated object

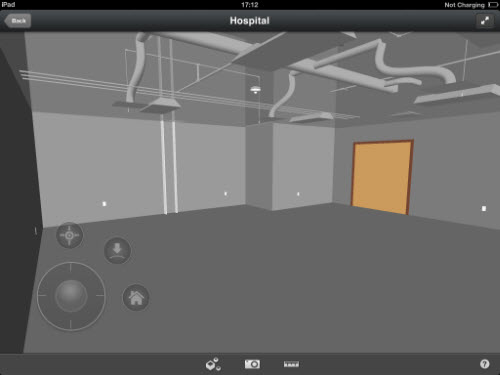

When you isolate an object the view zooms and highlights the isolated object. For example, the image below shows a door in the model before it is selected and isolated:

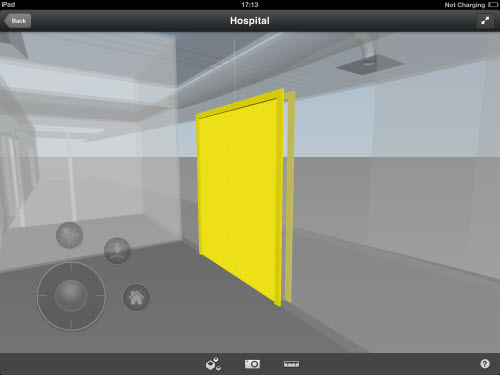

and the following image shows the door once it is isolated:

Isolate an object

To isolate a single object

1. In the model, tap the object you want to isolate
2. From the Action menu, tap Isolate

   The isolated object is highlighted and zoomed

To restore isolated object(s) to normal view

1. In the model, tap the isolated object
2. From the Action menu, tap Isolate
3. The isolated object(s) are restored to normal view, and all other hidden objects are visible

Isolate multiple parent and child objects

To isolate multiple dependant objects

1. In the model, tap an object you want to isolate
2. From the Action menu, tap Properties

   The selected object appears at the top of the Properties window

3. In the Properties window, click the angle bracket to the left of the selected object

   The parent object is displayed at the top of the Properties window, with the child objects listed beneath

4. In the Properties window, tap the parent and child objects you want to isolate Isolate
