Use the Deliverables menu to manage Real-Time Deliverables, and to configure real-time operations such as resize, pulldown, and so on. Many of these settings can also be altered in the Output Clip menu.

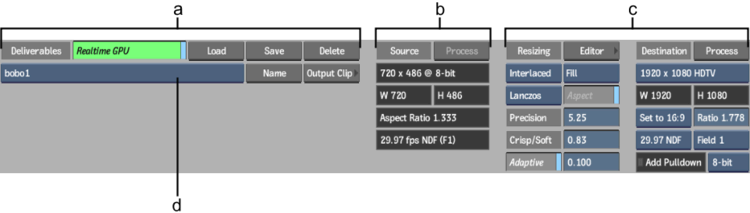

(a) Deliverable controls (b) Source clip information (c) Resize and frame rate controls (d) Deliverable box

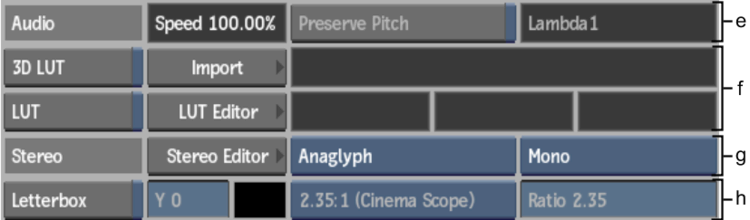

(e) Audio controls (f) LUT controls (g) Stereo controls (h) Letterbox controls
Most of the controls in the Deliverables menu are common to various parts of the software, and their functions are explained in their respective sections. The following does not describe how to use the controls, but rather how to manage the results using Deliverables and output them to tape in real time. The settings you create in the Deliverables menu can be previewed in the Player and are applied in real time during clip output.
|Anaglyph||Output the left eye and right eye as a red/cyan clip. You can reduce ghosting (Dubois), remove RGB values (Mono) or create custom anaglyph results.|
|Interlaced||Output the left eye and right eye as an interlaced RGB clip. You can output the left eye as field 1 or field 2.|
|Dual Image||Output the left eye and right eye so that they are adjacent to each other in the same clip, either in a left and right or top and bottom orientation.|
|Dual Output||Output the left and right eye separately to dual streams of a tape.|
