Depending on the Spread Type selected, you have different options for modifying the effect.
Interpolate Settings
- Interpolation Softness Amount field
Displays the amount of softness applied.
- Edges Shrink Amount field
Displays the amount of shrinking applied to the edges.
- Edges Shrink Softness field
Displays the softness of the edge.
- Premultiplied button
Enable to verify if the source is already premultiplied, in which case the interpolation effect must treat the image differently for the effect to work properly.

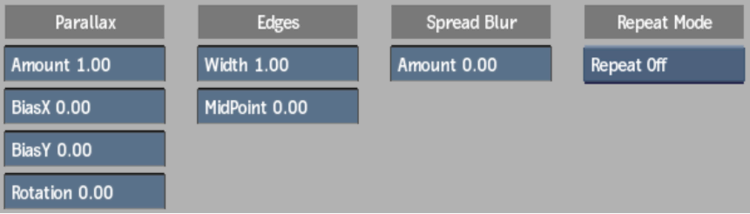

Parallax Settings
- Parallax Amount field
Displays the amount of parallax distortion applied to the clip, in pixels.
- Parallax X Bias field
Displays the amount of horizontal offset applied to the parallax distortion effect, in pixels.
- Parallax Y Bias field
Displays the amount of vertical offset applied to the parallax distortion effect, in pixels.
- Parallax Rotation field
Displays the degree of rotation applied to the pixel distortion.
- Edges Width field
Displays the width of the distortion edge, in pixels.
- Edges MidPoint field
Displays the offset of the distortion edge from the middle.
- Spread Blur Amount field
Displays the amount of blur applied to to the clip following the direction of the edge.
- Repeat Mode box
Select an option to fill the empty portions of the frame.
Stretch Settings
- Stretch Amount field
Displays the amount of stretching distortion applied to the clip, in pixels.
- Edges Width field
Displays the width of the distortion edge, in pixels.
- Edges MidPoint field
Displays the offset of the distortion edge from the middle.
- Spread Blur Amount field
Displays the amount of blur applied to to the clip following the direction of the edge.

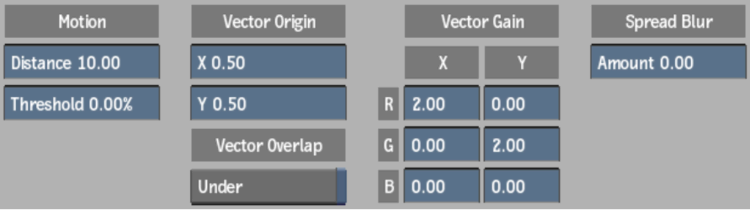

Vector Warp Settings
- Motion Distance field
Displays the amount of distortion to be applied to the image based on a given motion vector. A negative amount inverts the direction of the spread.
- Motion Threshold field
Displays the percentage for the cut-off point below which motion data is not applied to the image.
- Vector X Origin field
Displays the starting point of any horizontal motion, which can be used to offset values entered for X Gain.
- Vector Y Origin field
Displays the starting point of any vertical motion, which can be used to offset values entered for Y Gain.
- Vector Overlap button
Enable to invert the effects of the vector warp.
- Red X Gain field
Displays the amount of gain used from the red channel to augment the horizontal motion of the distortion effect on the image.
- Red Y Gain field
Displays the amount of gain used from the red channel to augment the vertical motion of the distortion effect on the image.
- Green X Gain field
Displays the amount of gain used from the green channel to augment the horizontal motion of the distortion effect on the image.
- Green Y Gain field
Displays the amount of gain used from the green channel to augment the vertical motion of the distortion effect on the image.
- Blue X Gain field
Displays the amount of gain used from the blur channel to augment the horizontal motion of the distortion effect on the image.
- Blue Y Gain field
Displays the amount of gain used from the blue channel to augment the vertical motion of the distortion effect on the image.
- Spread Blur Amount field
Displays the amount of blur applied to to the clip following the direction of the edge.
