General Settings

Stereo Mode box

Select a stereo mode to display the appropriate processing methods. Different method settings appear based on the type selected.

Select:	To:
Anaglyph	Process a red/cyan clip.
Interlace	Process an interlaced RGB clip.
Dual Image	Process a clip containing adjacent images.

Method box: Depending on the selected Stereo Mode, you have different options for modifying the effect.

Anaglyph Settings

Select:	To:
Custom	Customize the RGB left and right gain factor values. With this option, you can create anaglyph results based on the 3D lenses that will be used. NoteThis option is available in the Batch node and Modular Keyer node.
Dubois	Reduce ghosting between the left and right eyes.
RGB	Create an anaglyph result based on the RGB values.
Mono	Remove the RGB values before creating an anaglyph result. With this option, you will see just the stereo effect.

Output the left eye as field 1 or field 2.

Output the left eye and right eye so that they are adjacent to each other in the same clip, either in a left and right or top and bottom orientation.

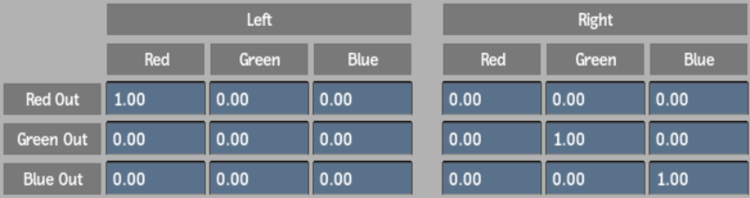

Left and Right Custom Gain Factor Fields: Displays the gain factor in the colour channel for the left eye and right eye. Enabled when Custom is selected in the Method box.

NoteThis option is available in the Batch node and Modular Keyer node.
