Use the Ribbon

Ribbon Tabs and Panels

The ribbon is composed of a series of tabs. Each tab contains a series of panels organized by task.

The Home tab

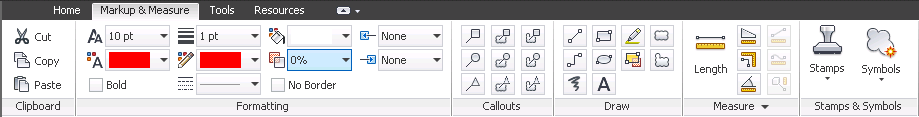

The Markup & Measure tab

The Tools tab

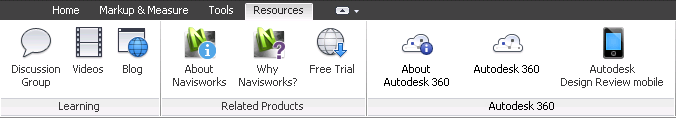

The Resources tab

Contextual Tabs and Panels

Design Review contains one contextual tab and one contextual panel. By default, the Animation tab is hidden. However, when a sheet containing an animation is shown on the canvas, this context causes the Animation tab to be shown. The Animation tab provides access to tools used to control how an animation is played.

The Animation tab is shown only when viewing an animation

Like the Animation tab, by default, the File panel is hidden by default. When a Design Review file is embedded, this context causes the File panel to be shown on the Home tab. The File panel provides access to tools typically available on the application button and Quick Access toolbar, which are unavailable in embedded mode. You can also show the File panel manually.

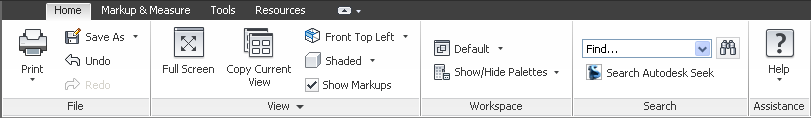

The File panel is shown on the Home tab only when viewing an embedded DWF file

Slideout Panels

In the middle of a panel to the right of a title, an arrow icon, , indicates that the panel can slide out to display additional tools and controls. Click the title bar of an open panel to display the slideout panel. By default, a slideout panel automatically closes when you click another panel. To keep a panel expanded, click the push pin icon, , in the bottom-left corner of the slideout panel.
