Accessing the Paint Node from Batch

Paint Node is accessed from Batch.

To access the Paint Node from Batch:

1. Select Batch.
2. In the Batch node bin, double-click the Paint node or drag the node to the Batch schematic.
3. Attach a clip or node output to the front tab.
4. Attach a clip or node output to the matte tab. If a matte clip is not attached, the node interprets the missing input as a white clip.
5. In the Batch schematic, double-click the Paint Node.

   The Paint Node menu appears.

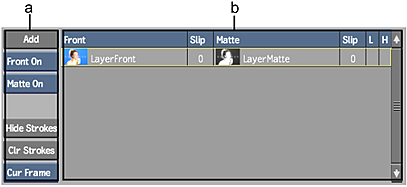

   (a) Source controls  (b) Sources List  



   (a) Current Colour Pot  (b) Current Brush  

   NoteThe Parent and Delete options in the Paint Tools box are standard Batch features and are not used in Paint Node.
