Accessing the Curves Menu

Use the Curves menu to modify RGB and Hue curves.

To access the Curves menu:

1. Do one of the following:
   • In the Main menu, click Colour and then Curves.
   • Press F7. See Displaying Colour Menus in the Player.

   The Curves menu appears.

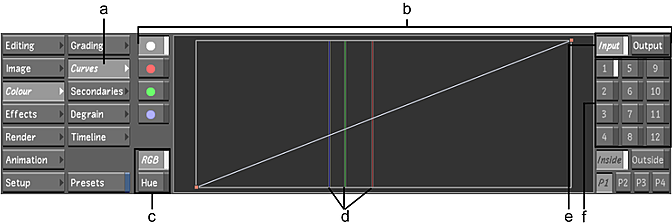

   (a) Curves button  (b) Curves menu  (c) RGB and Hue curve buttons  (d) Sampled colour values  (e) Input and Output buttons  (f) Secondary layers  

2. Enable one of the following buttons.

   Input

   Enables RGB and Hue curve modification for primary colour grading performed prior to secondary colour grading.

   Output

   Enables RGB curve modification for primary colour grading performed after secondary colour grading and the creation of Sparks effects.

   Secondary layer

   Enables a layer for RGB and Hue curve modification for secondary colour grading.

   NoteHue curves are not functional when the Output button is enabled.
