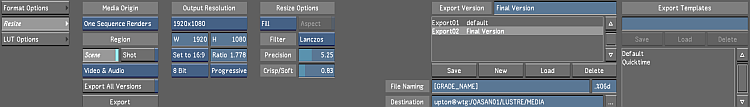

The Resize Tab

Adjust the values in the Resize Options tab to define the destination resolution and the framing of the exported media.

Output Resolution: Use to define the output resolution, aspect ratio, bit depth and scan mode of the exported media.

Resolution Field: Use to set custom resolution values.

Aspect Ratio Field: Select from a list of preset aspect ratios or set your own value.

Bit Depth Field: Use to define the bit depth of exported media.

Scan Mode Field: Use to define the scan mode of exported media.

Resize Options: Use to define the Fit Method, Resize Filter type, the Precision and the Crispness/Softness of the exported media.

Fit Method Box: Use to select the Fit Method applied to exported media. Options are:

• Fill (the default option)
• Crop Edges
• Letterbox
• Center/Crop

Resize Filter Type Box: Use to select the Resize Filter type applied to exported media. Options are:

• Impulse
• Triangle
• Mitchell
• Bicubic
• Quadratic
• Gaussian
• Shannon
• Lanczos

Aspect Button: Enable to use non-square pixel formats. This option is automatically enabled when Fit Method is set to Crop Edges or Letterbox.

Precision Field: Use to set the frequency cut-off point used during the Resize.

Crisp/Soft Field: Use to set the amount of blur used during the Resize.
