Your application uses the Discreet Native Audio subsystem. Discreet Native Audio uses the following hardware components, shipped with your system.
- Lucid ADA 88192 Audio Converter
Converts signals between the workstation and all digital or analog audio I/O devices.
- AJA K3G-Box Balanced Audio breakout box and AJA Kona 3G adapter card
The Balanced Audio breakout box is the audio component of the AJA breakout box. It provides connections for audio I/O. This breakout box connects to the AJA Kona 3G adapter on your workstation. The Kona 3G adapter provides real-time input and output of uncompressed SD and HD video signals as well as audio data at 24-bit resolution. The Kona 3G adapter handles balanced AES/EBU audio signals from the Balanced Audio breakout box.

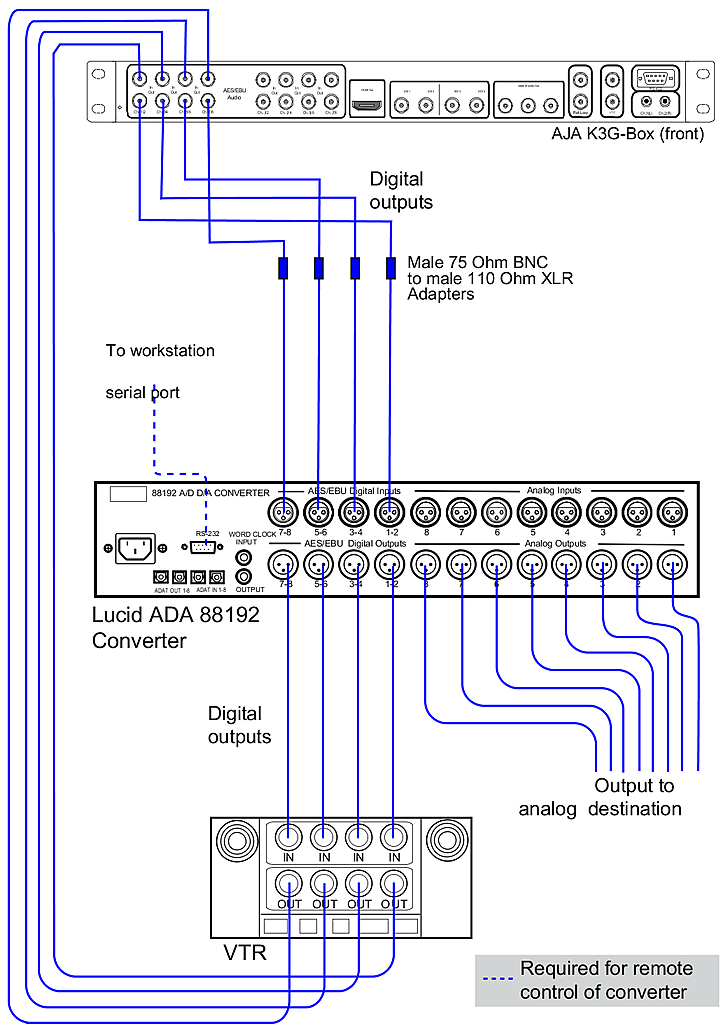

Connect the Discreet Native Audio hardware components to the AJA breakout box
