In the Industry Model explorer pane, you use the Industry Model explorer to view and edit data. Use Infrastructure Administrator to define industry model explorer profiles. You can define which items are displayed in the Industry Model explorer and configure Industry Model explorers for each industry model.

Configuring the Industry Model explorer

Click the Explorer edit button to edit the industry model explorer.

Definitions and objects that can be shown in the industry model explorer are:

Explorer Definition	Description
Data Model	Processes feature classes.
Domains	Processes domain tables.
Topologies	Lists the topologies.
Intersections	Starts intersection definitions
System	Lists the Client system tables.
Explorer Groups	Specifies an explorer profile.
Job By	Displays jobs ordered by date, state or type.
Job Enabled Topics	Displays job-enabled feature classes.
Jobs	Displays jobs
Plot	Lists the plot feature classes. We recommend that you do not display the plot feature classes in the industry model explorer.
Viewports	Lists the viewports.
Workflows	Lists the workflows.

To configure an Industry Model explorer

In the Infrastructure Administrator, click Enterprise and connect to the enterprise industry model . Open a project.
Click Industry Model menu > Explorer Manager.

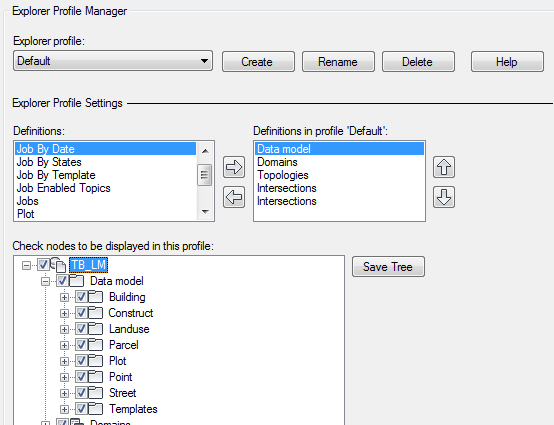

In the right pane, configure the industry model explorer content and layout, as shown in the following table:

Explorer Manager	Description
Explorer Profile	Specifies the group to edit, for example Default.
Create, Rename, Delete	Creates, removes or renames the explorer profile. Click a button.
Explorer Profile Settings	Specifies the industry model explorer items.
Arrow buttons	Adds or removes a selected item to or from the industry model explorer. Click the arrow.
Definitions in <explorer profile name>	Displays the order of the items in the tree view. Use the arrow buttons to change the display order.
Check Nodes To Be Displayed In This Profile	Displays the tree, where you can select or clear the nodes. Note You can also edit this tree in the Industry Model explorer pane by clicking the explorer edit button.
Save Tree	Saves changes, you make in the explorer tree.
Explorer Profile Security	Specifies access rights for explorer profiles. You can assign explorer profiles to user groups. For example, define an explorer profile that displays all workflows, and make it unavailable for the VIEWER user group. The settings are stored in the industry model, in the table TB_EXPLORER_GROUP_UG_RESTR. Note If a user is member of several user groups, he will see the explorer definitions and objects of all his user groups (OR). See User Group Priority.
User Group With Access To <explorer profile>	Displays the user groups that can access the current explorer profile. When you create a new explorer profile, all user groups can access the new profile.
User Group With No Access To <explorer profile>	Displays the user groups that cannot access the current explorer profile.
