To adjust control points

Move control points to change boundaries and paths.

Control points are magenta cubes associated with features you create using the sketching tools. Use control points to change the shape of a building footprint, alter the course of a roadway, or modify the boundary of a pond.

Feature	Description	Visual
Buildings	Control points appear at each corner along the perimeter of the building footprint.

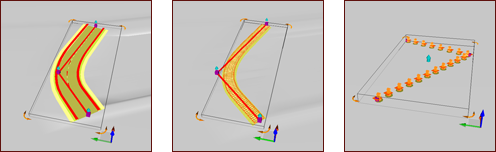

Roads / Railways / City Furniture	Features that use paths display their control points at the ends and corners.

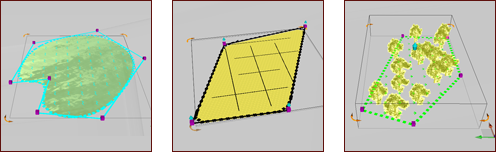

Water Areas / Coverages / Tree Groups	Features that are defined by boundaries have control points at each corner.

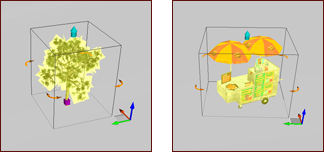

Individual Trees / City Furniture	Individually sketched features like a single tree or piece of city furniture have a control point at their base.
