Summary

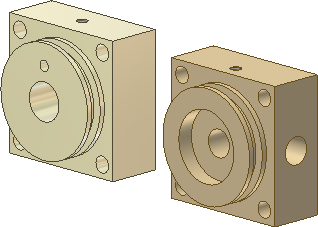

Congratulations! You have successfully completed this tutorial. In this exercise you:

• Created a part from a sketch.
• Used the dimension and constraint commands to control the size and behavior of the sketch geometry.
• Used parameters to name and link dimensions.
• Used feature commands to create solid geometry.
• Used the pattern command to array features.
• Saved a copy of a part to create a new part file.

What Next? - This tutorial introduced you to basic part modeling commands. To learn about additional part modeling techniques, such as the use of work features, see the Parts 2 tutorial.
