You can edit the inserted shaft.
- Select the shaft in the browser or graphics window, then right-click, and select Edit Using Design Accelerator.
- Ensure that the Design tab is activated, and then select the cone section, as shown.
- In the 2D Preview area, double-click the selected cone section to display the Cone box dialog box.
- Change First Diameter to 100 mm and Section Length to 90 mm. Click OK to close the Cone dialog box.

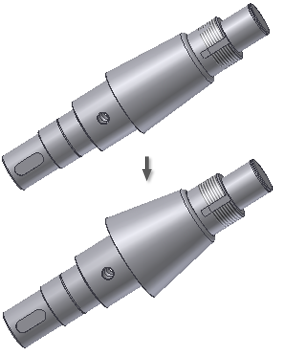

- Click OK in the Shaft Component Generator dialog box. The edit is applied to the shaft.
