Create Miter Joints

    Table of contents
    No headers

    Now, create miter joints between the shorter vertical tubes and the horizontal tube.

    1. On the ribbon, click Design tab ac.menuaro.gif Frame panel ac.menuaro.gif Miter icon_cmd_design_mitreprofile_32x32.png.

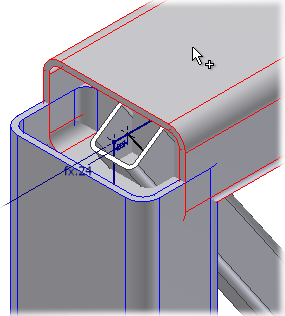

    2. Select the first and second tube as shown.

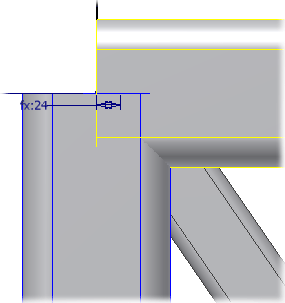

    3. Orient the model view as shown in the following image to see how the miter options affect the miter joint.

      Note: The visibility of the tube in the background has been turned off for clarity.




    Previous | Next
