In the iCopy: File Names dialog box, modify file names and the location path for parts and assemblies that the iCopy command creates. You can modify names individually, or add a prefix or suffix to all file names automatically.
- Check the Prefix box in the Naming Scheme area of the iCopy: File Names dialog box.
- Enter My- in the Prefix field and click Apply in the Naming Scheme area of the dialog box. All file names update with the prefix.
- Click OK in the iCopy: File Names dialog box to create the files.

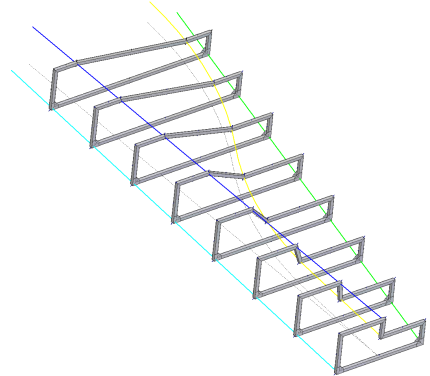

If your assembly does not appear as shown in the following image, click the Local Update
button on the Manage
tab to update the iCopy results.
- Review the relationship between the template points and target points and rail to see the effect these had on the results.Close the file. Do not save changes. The Target.iam assembly is used later for the authoring exercise.
