Create an Embossed Feature

Table of contents

No headers

In the next section, we create the embossed feature.

Turn on the visibility of the Emboss Sketch in the browser.
Turn off the visibility of the bottom solid and the large upper solid.
NoteTurn off the visibility of the non-participating solids to allow Inventor to choose the body to be operated on automatically.

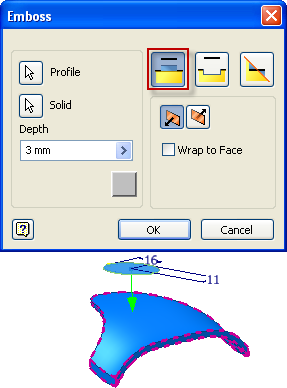

Start the Emboss command.
Set the Depth to 3-mm.
Select the Emboss from Face option.
Click OK to create the embossed feature.
Start the Fillet command.
In the Fillet dialog box, enter 2-mm for the Radius value.

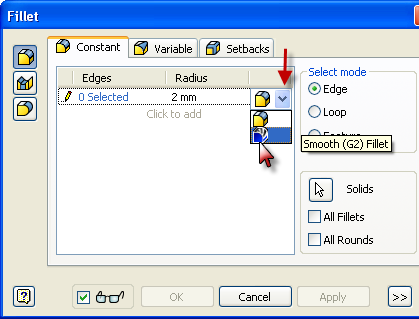

Select the drop-down and set the fillet type to Smooth (G2).
Click the pencil icon to change to a selection mode.
Pick the upper and lower edges of the emboss feature, and then click OK to create the fillets.

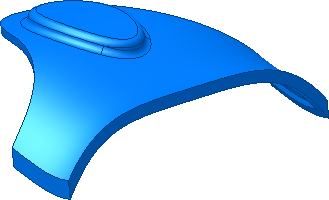

Save the file.
