Create a Contour Roll

1. On the ribbon, click Sheet Metal tabCreate panel Contour Roll. The Contour Roll dialog box displays, you are prompted to select an open profile.
2. In the graphics window, click the edge geometry that you projected into your sketch. The selected geometry highlights, and the Axis selection button becomes active.
3. In the graphics window, click the straight line that you created parallel to the projected edge and then offset with a 100-mm dimension.

   A 90 degree Contour Roll section previews; however, what is previewed is not what you want for this exercise.

4. Clear the default Rolled Angle value of 90 deg degrees and enter 30 deg into the value field.

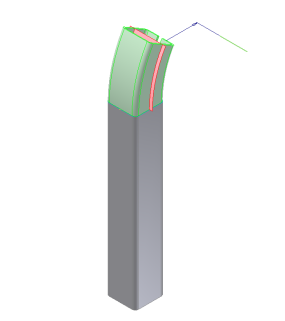

   Your preview should now appear as follows:


5. Click OK to create the 30-degree Contour Roll segment and close the dialog box.

Next, you repeat these steps with a few minor differences to create a similar Contour Roll that sweeps 30 degrees in the opposite direction.
