No headersPart 2 - Create parts from DWG files.
| Category | Data Exchange |
| Time Required | 15 minutes |
| Tutorial File Used | eBox2.dwg |
NoteClick and read the required Tutorial Files Installation Instructions at http://www.autodesk.com/inventor-tutorial-data-sets. Then download the tutorial data sets and the required Tutorial Files Installation Instructions, and install the datasets as instructed.
Import two different layers from the same DWG file. Create the cover for an electrical panel from the DWG geometry.
This tutorial draws on skills you learned in part 1 of this tutorial set.

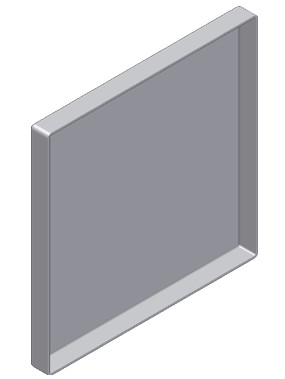

The cover consists of a base extrusion, a fillet, and a shell. You use the existing geometry and dimensions from the DWG file to create the part features in Autodesk Inventor.
- Complete Part 1 (DWG Data 1) of this tutorial set.
- Know how to set the active project and navigate model space with the various view tools.
- See the Help topic “Getting Started” for further information.
- Use Next or Previous at the bottom-left to advance to the next page or return to the previous one.
