Open the Assembly

    Table of contents
    No headers

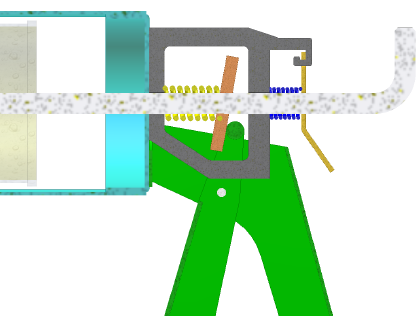

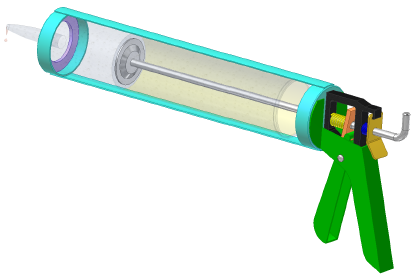

    A model of a caulk gun illustrates different contact types and how to use them in a static, structural analysis.

    1. Click Open.
    2. Set the Project File to Tutorial_Files.ipj.
    3. Open Stress Analysis ContactsCaulk Gun.iam.

    Previous | Next
