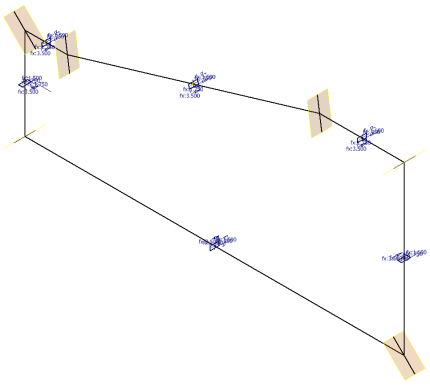

The iCopy template assembly contains the skeleton geometry that is used to create an iCopy definition. You create an assembly, place the Skeleton-frame.ipt component, and then constrain it.
- Begin a new assembly based on the Standard (mm).iam template.
- Use the Place Component command to place one instance of Skeleton-frame.ipt located in the \Tutorial Files\iCopy folder.
- Right-click Skeleton-frame:1 in the Model browser and select Adaptive.
- Save the assembly as Frame.iam in the \Tutorial Files\iCopy folder..
