To complete use the 3D sketch in the sweep feature, you need to reorder the features in the browser. You then edit the sweep and change the type to use a guide rail for the feature.
- In the browser, drag 3D Sketch2 above Sweep1. This allows you to use the 3D sketch in the Sweep feature.
- Expand Sweep1 and edit Sketch2.
- Change the diameter of the circle to 0.01 mm.
- Finish the sketch.
- Edit Sweep1.
- Change the Type to Path & Guide Rail.

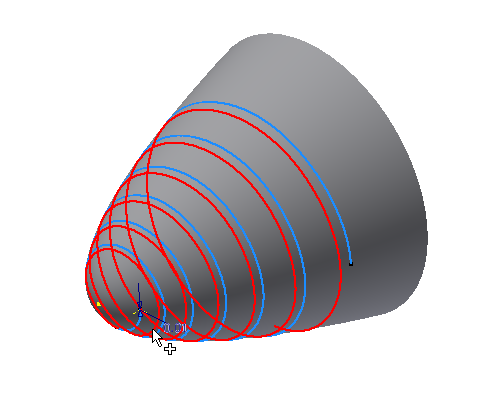

- Select the equation curve in Sketch2 as the Guide Rail.

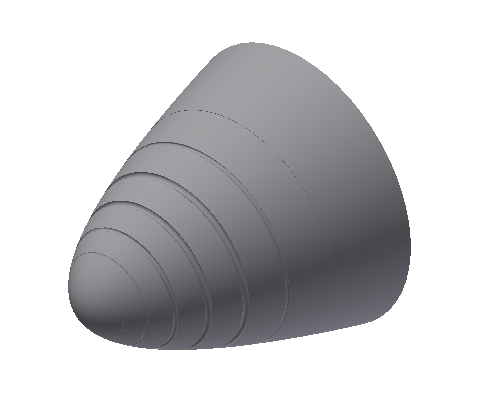

- Click OK.
