Modify Hole Depth

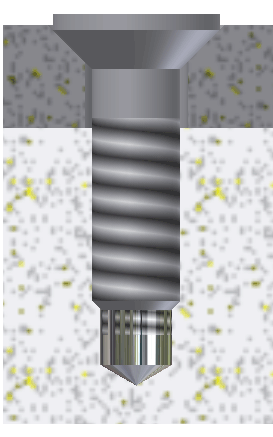

1. Next, drag the grip for the hole to increase the hole depth, approximating the depth shown in the illustration.

2. Click OK.


   In addition to modifying the hole depth with a grip free-drag, you can precisely define the hole depth.

3. In the browser, right-click Bolted Connection:2, and then select Edit using Design Accelerator.
4. Select the lower hole thumbnail, and then click the access button next to the hole thumbnail.

5. In the Modify Hole dialog box, enter 16 mm in the Hole Depth field and 14 mm in the Thread Depth field.
6. Click the check mark to close the dialog box, and click OK in the generator dialog box.
