No headers- On the ribbon, click
. - Select the hole as the feature to pattern.

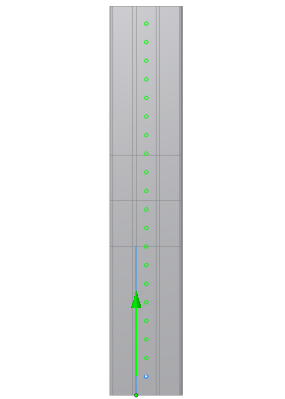

- Click the Direction 1 button and select a vertical edge and direction as shown:
- Enter a value of 20 for the total number of holes, and a value of 25 mm for the distance between each hole.
- Click OK to create the pattern of holes that cross the two flattened roll faces and close the Rectangular Pattern dialog box.
Next, you add two Refold features to return the flattened model to the folded and rolled state.
