The assembly used in this tutorial is also used in other Cable & Harness tutorials. Be sure to save changes made in this assembly to continue with further Cable & Harness tutorials.
Back up the Cable & Harness directory in the Tutorials Files directory before beginning the tutorial.
Open the assembly
- Click Open.
- Set the Project File to tutorial files.ipj.
- For Microsoft Windows XP, the default file location is Program Files\Autodesk\Inventor <version>\Tutorial Files
- For Microsoft Windows 7, the default file location is Public\Public Documents\Inventor <version>\Tutorial Files

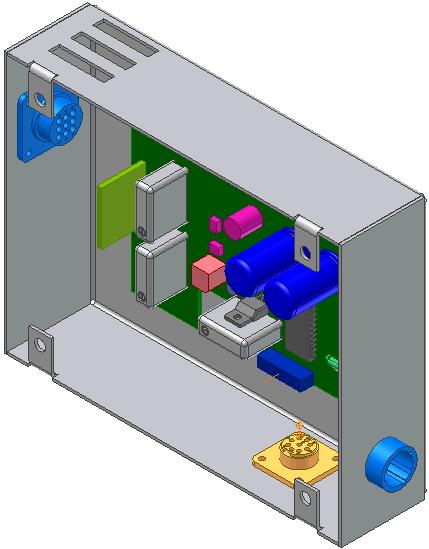

- Open the tutorial file Enclosure_Assembly.iam located in the Cable & Harness subfolder.
