Import seven discrete wires into the harness assembly using import files that are already created. To view the file contents, open the file in a text editor.
Data File (.xml or .csv): WireListImport.csv
Configuration File (.cfg): WireListConfiguration.cfg
The Imported Harness Data dialog box is displayed and lists the items that will be imported. For this example, there are no errors. If errors exist, you can right click the items in question for more information on the issue and how to fix it.
Optionally, expand the folders on the Import Harness Data dialog box to view details on the import.

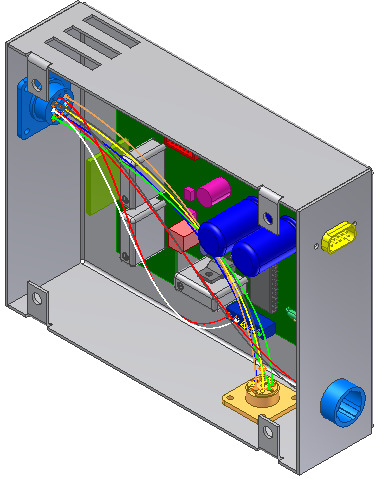

A message box displays the status of the import. The message indicates that seven wires imported successfully. The log file contains details on the import, including any associated errors or warnings.
