Define a second harness segment between two circular connectors (360575:2 and 360575:1) and around the PCB board on the opposite side of the first segment.
- Activate Harness Assembly2.
- Click .
- Right-click, select Edit Offset then change the offset to 0.200.

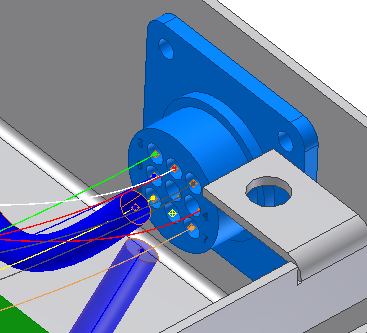

- Click the face of connector 360575:2 near pin 5.
- Continue selecting points as shown to create a segment like the one shown in the following illustration.
- Before you select the last point on the connector face, change the offset to 0.270.
- Click the bottom of the connector face near pins 7 and 8.

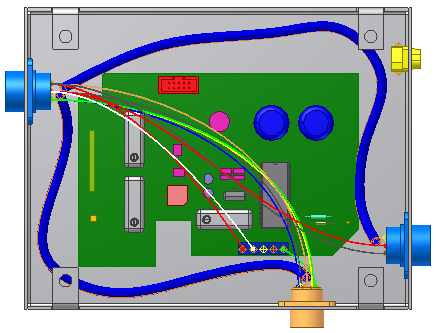

The new segment is positioned like the following illustration.
- Right-click and select Finish to complete the segment.
- Save the harness assembly.
