Redefine the Splice

Redefine a splice along the wire or to an arbitrary location

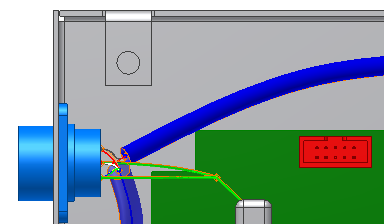

1. Right-click the splice, and then select Redefine Splice on the context menu.

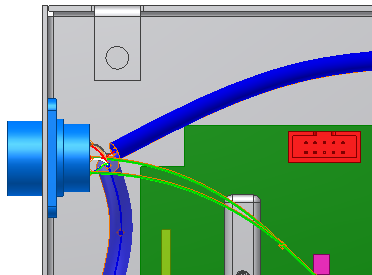

2. Click a new location along the same wire.

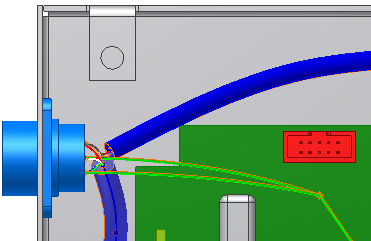

3. Right-click the Splice again, select Redefine Splice, and then select a new location in the enclosure.

   The wires move with the splice.


4. Use Undo twice to return the splice to the original location.
