Next, we define the local mesh refinement.
- Activate Mesh View and orient the model as shown.
- Right-click the Mesh folder, and click Local Mesh Control.

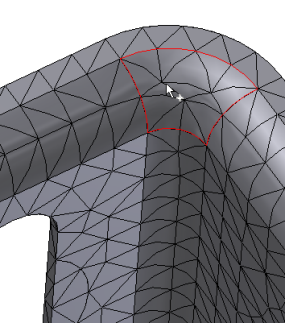

- Select the corner blend face, and enter 0.5 mm for the Element Size value.
- Click OK.
- To preview the mesh, right-click the Mesh folder and click Update Mesh.

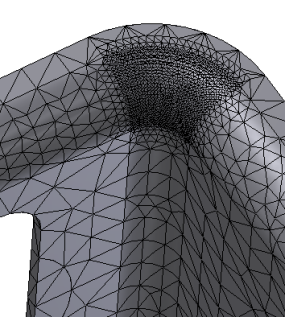

The mesh preview shows a much finer mesh at the corner blend face compared to the mesh from the first simulation.
