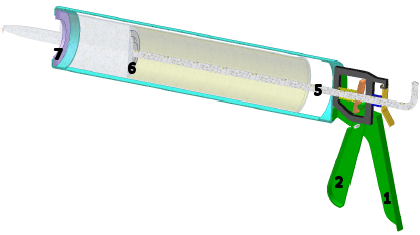

No headersWe considered the following mechanics of the caulk gun when creating the simulation.
- User holds the handle [1] and pulls back on the trigger [2].

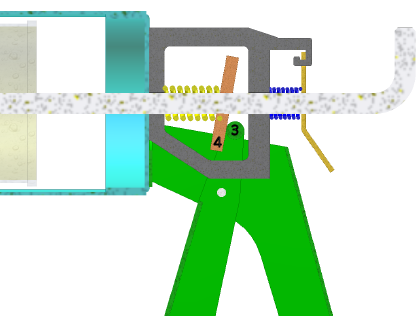

- The pin end of the trigger [3] pushes the actuator [4] forward.
- The actuator tightly engages the plunger [5] and pushes it forward.
- The plunger head [6] pushes the caulk tube bottom.
- The tube is held in place by a ring [7] at the end of the caulk gun.
