We are ready to enter the Frame Analysis environment.

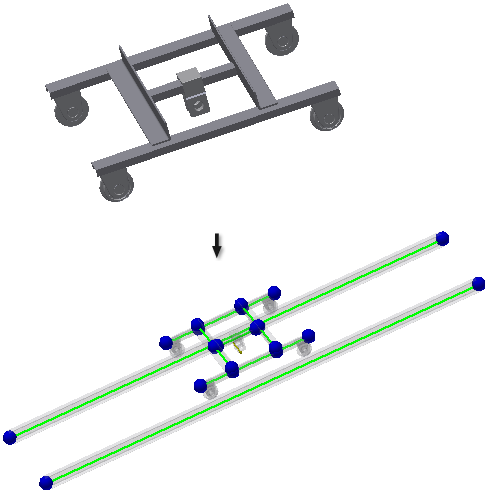

The Inventor model is automatically converted into idealized nodes and beams, and a simulation is created. The Gravity symbol also displays.
The browser populates with a hierarchical structure of the assembly and analysis-related folders.
Most of the commands in the ribbon panels are now enabled for use. Disabled commands enable after you run the simulation.
