No headersWe can graphically differentiate custom nodes in the graphics window.
- On the ribbon, in the Settings panel, click Frame Analysis Settings
. - On the General tab, in the Colors area, click the arrow button next to the Custom Nodes field.
- On the Color dialog box, select a color for custom nodes. Select a red color

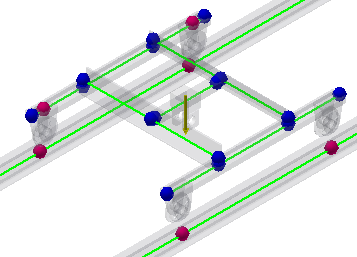

, and click OK to save the changes and exit the Color dialog box. - Click OK in the Frame Analysis Settings dialog box. All custom nodes now display in red color in the graphics window.
