Intent Properties/Immediate Window

    Table of contents
    1. 1. Properties
    2. 2. Immediate

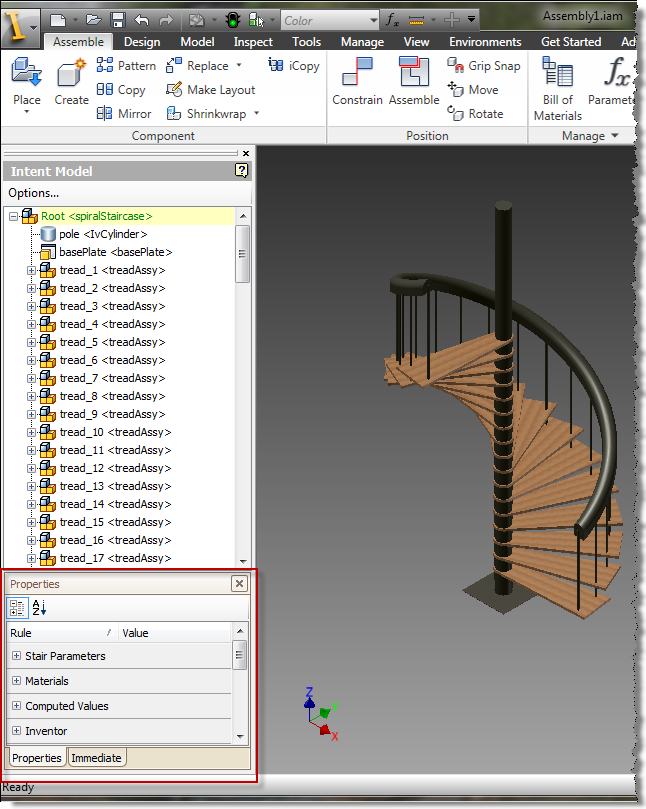

    When an Intent Model is loaded, Intent displays the Properties and Immediate windows. By default, these windows are located below the Intent Model browser.

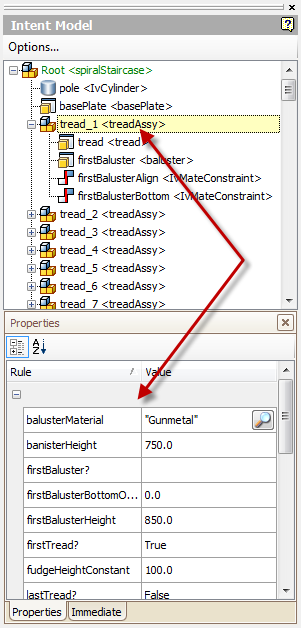

    Properties

    The Properties pane displays rule and parameter values for the Intent part that is selected in the Intent Model browser. You can view rule values and force rule evaluation, among other things, in the Properties pane.

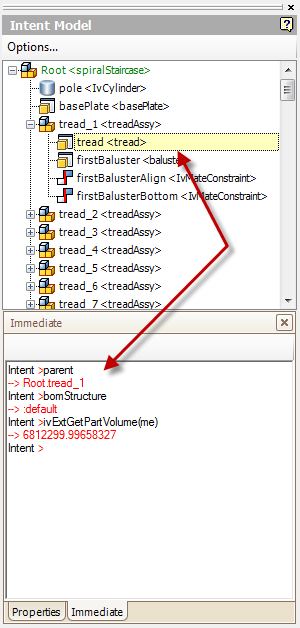

    Immediate

    The Immediate pane provides real-time interpretation of rules, functions, methods in the context of the Intent part selected in the browser.
