Create a New Intent Design Using Design Editor

You can create a new design in the Intent Design Editor using the following steps:

1. Open Design Editor (HINT_DESIGNEDITOR).

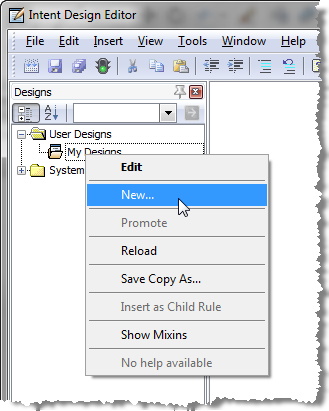

2. In Design Editor, right click on a design in the User Designs folder and select New... from the context menu.

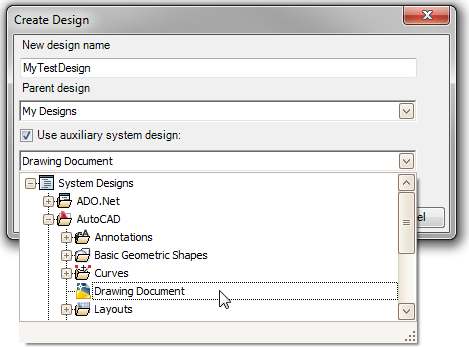

   • In the Create Design dialog box, name your design.
   • Optionally, change the parent design by selecting one from the dropdown list.
   • Mark the check box labeled Use Auxiliary System Design and select Drawing Document to mix in the AcDrawingDocument design.

   • Click OK.

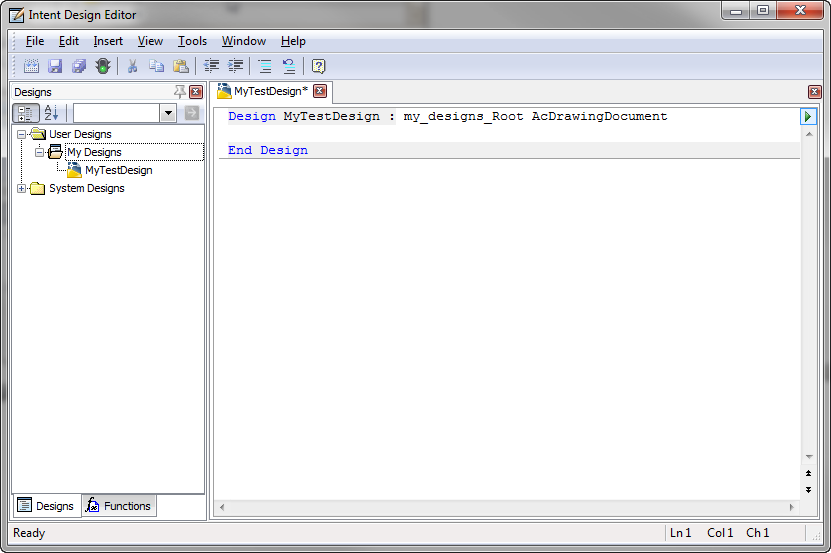

3. The new design is created and visible in the Designs pane and the Design Editor source code window.
