The Intent Tracer generates a log file that contains data in the following format:
' Call Entry : Time, Indent, Rule(R) or Function(F), Part[Rule or Function], Design, Arguments ' Call Return: Time, Indent, >>> , Return Value 00:00:08.6895932,1,R,Root[partName],BasePart, 00:00:08.6897488,2,R,Root[%%Name],BasePart, 00:00:08.6899600,2,>>> ,:Root 00:00:08.6900544,1,>>> ,:Root
| Call Entry | |
| Time | Displays the time using a high-resolution timer. |
| Indent | Shows the Intent stack level at the time of call. |
| R/F mark | Describes whether we log activity for the rule or function call. |
| Part[Rule] | The part/rule (or function) combination that contains the reference string for the containing part, and the rule/function name. |
| Design | Contains the name of the Part Design. |
| Arguments | Field contains the values of the arguments passed to a function/method. |
| Call Return | |
| Time | Displays the time using a high-resolution timer. |
| Indent | Shows the Intent stack level at the return time. |
| Return value | Field contains the returned value from the rule/method/function. |

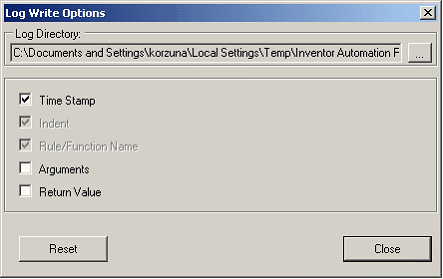

Log Write Options control the scope of the data written into log file.
