Use Trim and Extend to trim and extend sketch entities to other entities, remove sections of entities, or delete entities.
Trim and Entity
Pause the cursor over any sketch entity. The preview shows the section of the entity to delete. Click to delete that section. If the entity does not intersect another entity, the entire entity highlights.
The section is deleted if it intersects another entity.
The section is deleted if it intersects two other entities, leaving two sketch entities.
The entity is deleted if it does not intersect any entities.
Extend an entity

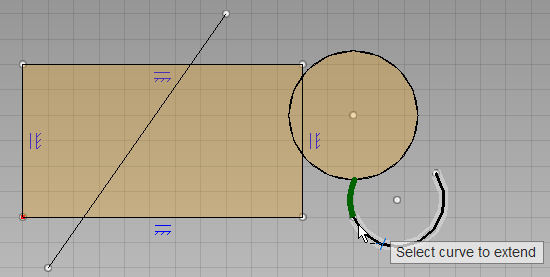

Pause the cursor over any sketch entity. The added section highlights if the entity intersects another entity. If the entity can be extended at both ends (for example, an arc), the end that is closest to the cursor extends. If an entity cannot be extended against another entity, there is no preview, and a click has no effect.
