No headersDelete removes a Face, Solid, Sketch Entity, or Construction Entity.
Delete cannot convert a solid into a quilted surface. If a face on a solid is deleted, adjacent faces are extended or modified to heal the model. An error displays if you select a face that cannot be replaced.
If you want to remove a face, use the Delete Face command on the Surface ribbon.
- Switch the ribbon to Solid, if necessary.
- Select a face, solid, sketch, feature, sketch entity, or construction entity.
- Click Delete on the Solid panel. The selection is deleted, and the model is healed if necessary. An error displays if the model cannot be healed.

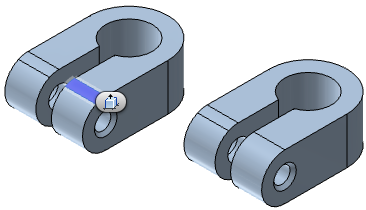

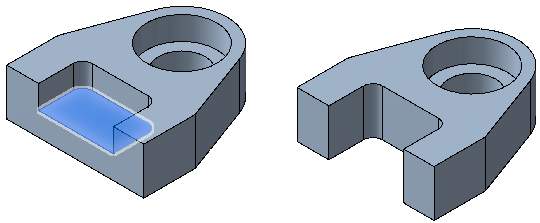

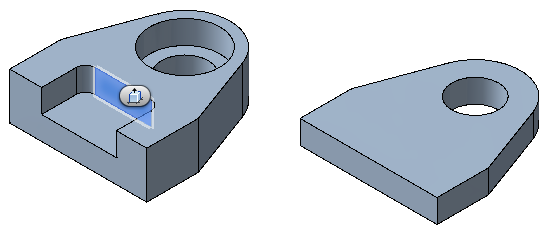

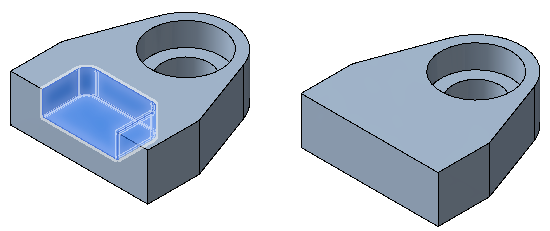

The delete command modifies the solid to heal the opening left by the deleted the face. The change depends on model geometry and the selected faces. This table has several examples of delete face operations.
