No headersTrim splits intersecting surfaces, and removes one or sections of a surface or quilt. You can use a surface, quilt, solid face, or a work plane as a split tool. You can use a connected series of sketch entities as a split tool, if they do not intersect the target surface.
- On the Surfaces panel, click Trim.
- Select a Cutting tool. Valid feature selections include a surface, a quilt, a solid face, or a work plane. You can also use a connected series of sketch entities that do not intersect the target surface.

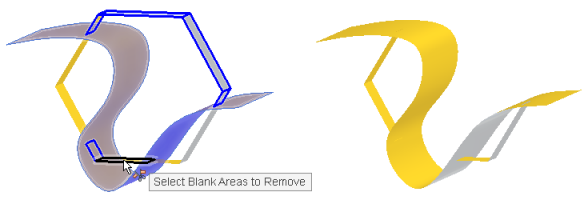

- The intersecting surfaces highlight. Select the sections to remove.
- Click OK to delete the selected surfaces.
