Move Editor

    Table of contents
    No headers

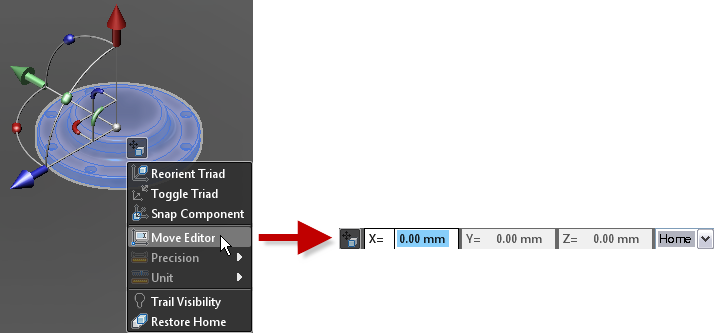

    Use the Move Editor to precisely move or rotate a component. Type move values for X, Y, or Z and press the Enter key. The move distance can be calculated from:

    • Here - The current position of the selected component.
    • Home - The original position of the selected component.
    • Face - A selected face.
