Solid and Void Forms

The Create Form tool provides 2 tools:

• Solid Form

  The Solid Form tool is used to create solid geometry.


• Void Form

  The Void Form tool is used to create negative shapes (voids) that cut into solid geometry.

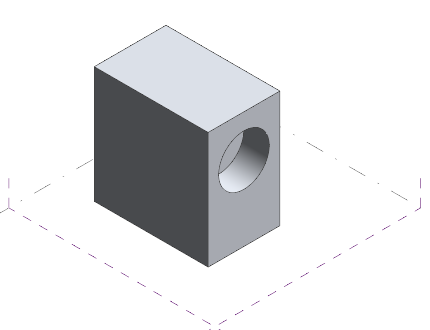

A void cut into a solid form

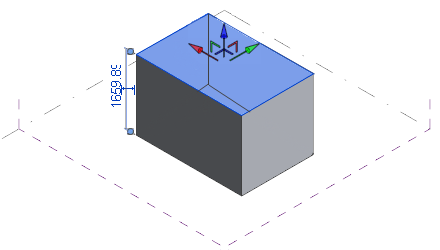

3D controls on a selected void.

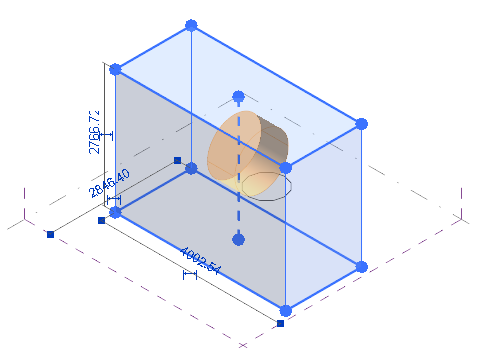

A void dragged to the middle of the solid form (shown in X-Ray mode).

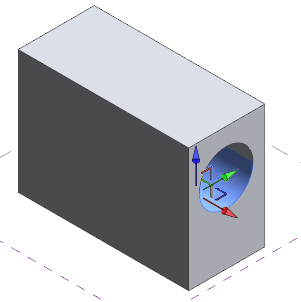

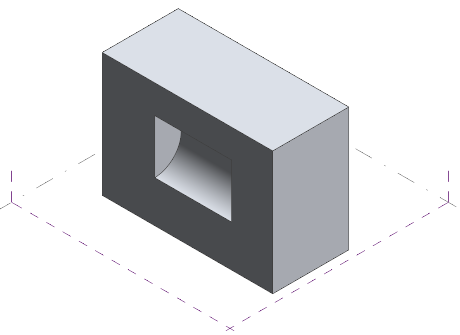

A void dragged from the middle of the solid form to a surface, and cutting the surface geometry.
