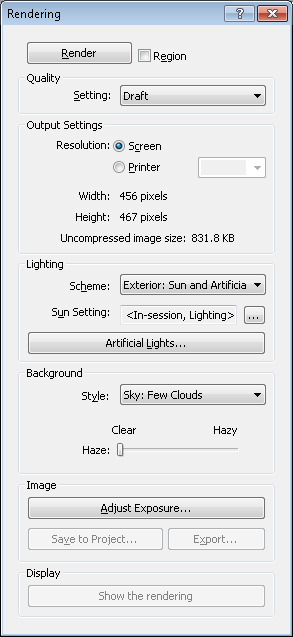

In the Rendering dialog, use the Background settings to specify a background for a rendered image. The background can display a solid color, sky and clouds, or a custom image.

NoteWhen you create an interior view that includes natural light, the sky and cloud background can affect the quality of light in the rendered image. For more diffuse natural light, use more clouds.

To specify a solid color

In the Rendering dialog, under Background, for Style, select Color.
Click the color swatch.
In the Color dialog, specify the background color for the rendered image.
Click OK.
Continue to define other render settings.

To specify a background with sky and clouds

In the Rendering dialog, under Background, for Style, select a Sky option that indicates the desired number of clouds.
For Haze, drag the slider between Clear and Hazy.
Continue to define other render settings.

To specify a custom image

In the Rendering dialog, under Background, for Style, select Image.
Click Customize Image.
In the Background Image dialog, click Image.
Navigate to the location where the image file resides, select the image, and click Open.
In the Background Image dialog, specify Scale and Offset, and click OK.
Continue to define other render settings.
