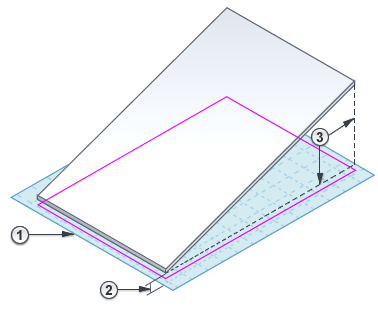

Creating a Sloped Surface Using a Single Sketch Line

You can use this method to create a sloped surface on the following types of elements:

• soffits
• floors
• structural floors

ceilings

To create a sloped roof, see Roof Slope.

To slope a building pad, use a Creating a Sloped Surface Using a Slope Arrow.

To create a sloped surface

1. If you are not already in sketch mode, select the element in a plan view, and click (Edit Boundary/Footprint/Sketch).
2. Select one boundary line and, on the Properties palette:
   1. Select Defines Constant Height.
   2. Select Defines Slope.
   3. Enter a value for Slope .
   4. (Optional) Enter values for Level and Offset From Base .

3. On the ribbon, click (Finish Edit Mode).
