Adding a Building Pad

Table of contents

1. Video: Creating a Building Pad

Video: Creating a Building Pad

Open a site plan view.
Click Massing & Site tabModel Site panel (Building Pad).
Use the drawing tools to sketch the building pad as a closed loop.
On the Properties palette, set the Height Offset From Level and other Building Pad Properties as needed.

TipTo see the building pad in a floor plan view, set the building pad offset to a value higher than Level One, or adjust the view range.

Examples

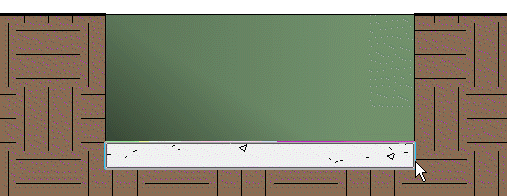

The following image shows a section view of a building pad offset from the surface.

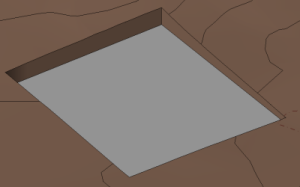

The following image shows a 3D view of a building pad on a graded toposurface.

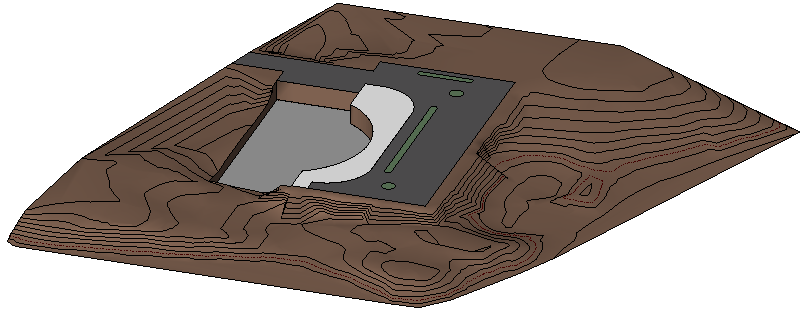

The following image shows a 3D view of a sloped building pad on a toposurface.
