Manipulating Joined Forms

In the conceptual design environment, the surfaces, edges, or vertices of joined forms can be modified using the 3D controls.

To join forms

1. Click Modify | Form Element tabGeometry panel Join.

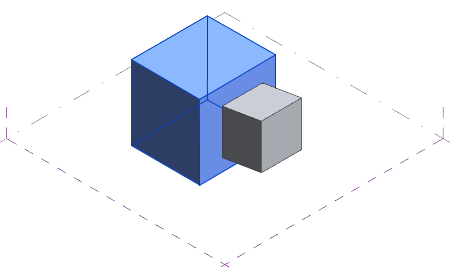

2. Click the first form.

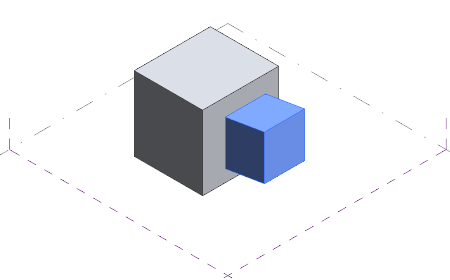

3. Click the second form.


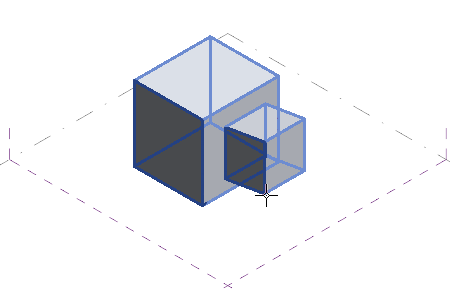

   The form is joined. See Joining Geometry.



To manipulate joined forms

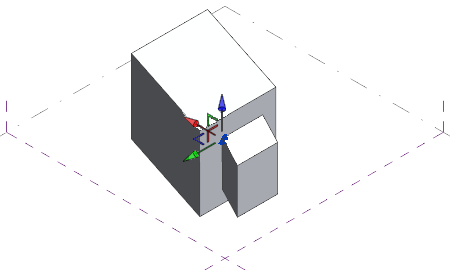

1. Click a joined surface, edge or vertex. The 3D control arrows display.

2. Drag a 3D control arrow in any direction.


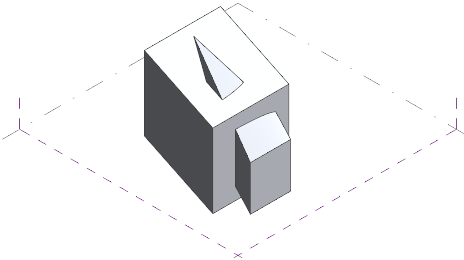

   The joined form remains as one unit.
